End mill bits are essential tools for machining tasks, used in various industries for cutting, shaping, and finishing materials. Selecting the right end mill bit for your application ensures precise cuts, increased efficiency, and reduced tool wear. With numerous types, sizes, and materials available, making the right choice can be challenging. This guide outlines five essential tips to help you choose the perfect end mill bit for your project.
The first step in choosing the right end mill bit is understanding the material you will machine. Different materials require specific end mill features:
Soft Materials (e.g., aluminum, plastic): Use end mills with a high helix angle and polished flutes to prevent material buildup and ensure smooth cuts.
Hard Materials (e.g., steel, titanium): Opt for carbide or coated end mills designed for durability and heat resistance.
Brittle Materials (e.g., glass, ceramics): Choose diamond-coated end mills for precision and minimal chipping.
Matching the end mill to your material ensures optimal performance and tool longevity.
End mills come in various types, each suited for specific machining tasks. Consider the following:
Flat End Mills: Ideal for roughing, slotting, and surface milling.
Ball Nose End Mills: Best for 3D contouring and curved surfaces.
Corner Radius End Mills: Provide added strength and reduce chipping in corner machining.
Roughing End Mills: Designed for removing large amounts of material quickly with a wavy cutting edge.
Finishing End Mills: Ensure smooth surfaces with a polished edge.
Choose the type that aligns with your machining requirements for precise and efficient results.

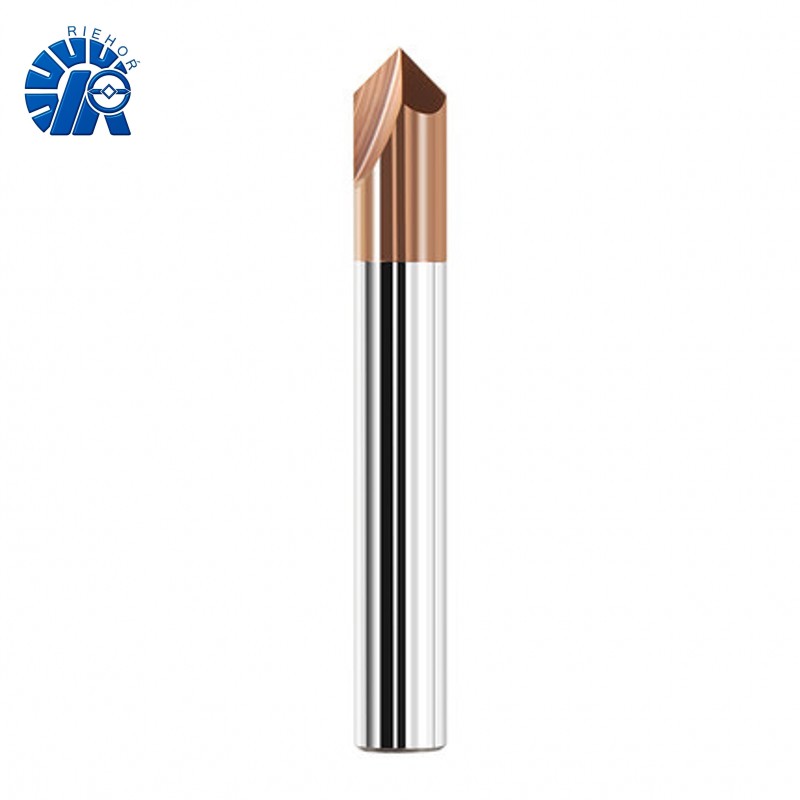

Carbide Chamfer Milling Cutter
The number of flutes on an end mill significantly affects its performance:
Two-Flute End Mills: Offer excellent chip clearance, ideal for soft materials.
Four-Flute End Mills: Provide a smoother finish and are suitable for harder materials.
Multi-Flute End Mills (6+): Enhance surface finish and are great for finishing operations but may have reduced chip evacuation.
Balancing flute count with material type and cutting speed ensures efficiency and reduces tool wear.
End mill coatings enhance performance and durability by reducing friction and improving heat resistance. Common coatings include:
TiN (Titanium Nitride): Improves wear resistance and reduces friction.
TiAlN (Titanium Aluminum Nitride): Offers superior heat resistance, ideal for high-speed machining.
Diamond Coating: Best for machining abrasive materials like composites and graphite.
Choose a coating based on the machining speed, material type, and operational demands to maximize tool life.
The diameter and length of an end mill affect its performance and compatibility with your project:
Smaller Diameter: Suitable for detailed work and tight spaces but may require slower cutting speeds.
Larger Diameter: Ideal for removing large volumes of material quickly.
Shorter Length: Provides greater stability and reduces the risk of tool deflection.
Longer Length: Necessary for deep cuts but may compromise stability.
Carefully select the tool size to balance efficiency and precision.
Carbide is the most popular material for end mills due to its durability, heat resistance, and ability to handle high-speed machining. HSS (High-Speed Steel) is also used for less demanding applications.
Two-flute end mills are best for soft materials requiring efficient chip removal. Four-flute or multi-flute tools are better for hard materials and finishing operations.
No, each material has specific requirements for cutting angles, coatings, and flute designs. Using a universal end mill may compromise performance and increase tool wear.
Replace end mills when you notice dull edges, reduced cutting performance, or excessive heat generation. Regular inspections can help determine wear levels.
Roughing end mills remove material quickly with a serrated edge, while finishing end mills create a smooth, precise surface with a polished cutting edge.
Choosing the right end mill bit is crucial for achieving optimal machining results. By considering factors such as material type, end mill design, flute count, coating, and size, you can enhance precision, efficiency, and tool life. Whether you're working on a professional project or a DIY task, these tips will help you select the perfect end mill for your needs.
