CNC machining relies on numerous high-precision components, and CNC Tool Holder Types play a vital role in the process. These holders ensure accurate, secure, and efficient tool operation, directly influencing the quality of the finished product and the longevity of the machine. In this article, we will discuss what CNC toolholders are delve into their various forms and applications, including the CNC Turning Tool Holder Types used in specialized machining processes.
A CNC tool holder from RuiHan acts as a crucial intermediary between the cutting tool and the machine spindle. This connection protects the spindle and ensures the cutting tool operates with precision. High-quality CNC Tool Holder Types are meticulously manufactured to prevent tool breakage and maintain accuracy during high-speed machining operations.
BT ER collet chuck
The quality of the tool holder directly impacts the finished product's precision, the noise level during operation, and the machine's lifespan. High-speed operations demand stable and reliable CNC Tool Holder Types, as any imbalance or wear can result in significant damage to both the tool and the spindle.
To maintain peak performance, tool holders require regular cleaning and inspection. Collets, a vital component of many CNC Tool Holder Types, should be replaced every two to three months if used continuously. Adhering to a robust maintenance routine can enhance machining precision and extend the lifespan of both the tool holder and the cutting tool.
There are several types of CNC tool holders available in the market, each designed to suit specific machining requirements. The following are some of the most common types:
CAT tool holders, also known as V-Flange Tools, are versatile and robust, making them suitable for heavy-duty roughing and precision machining. These holders support automated tool changer (ATC) technology, allowing rapid tool swaps. A retention knob centers the holder in the milling spindle, ensuring accuracy.
HSK (hollow taper shank) tool holders feature an innovative clamping mechanism that locks securely using segmented collets. These holders provide exceptional clamping force, surpassing CAT holders in certain applications. Their hollow shank design makes them lightweight and ideal for high-speed machining.
BT tool holders are symmetrical around their central axis, ensuring superior balance and stability at high speeds. Unlike CAT holders, BT holders use metric thread pull studs, making them ideal for precision machining where balance is critical.

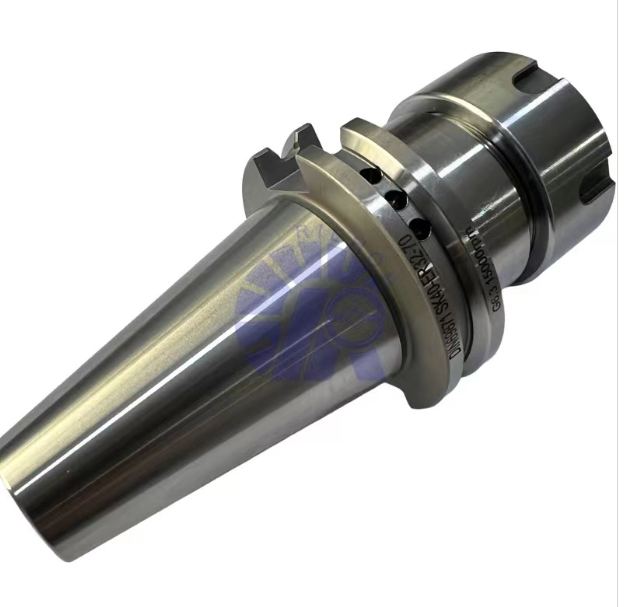

DIN69871 Tool holder
CNC Turning Tool Holder Types are specifically designed for lathe operations and other turning processes. They secure cutting tools used in shaping, drilling, and threading operations, ensuring accuracy and reducing the risk of tool deflection during machining.
Collet chucks hold the workpiece securely, offering high precision and speed. Though they handle a limited range of workpiece sizes, their precision makes them indispensable in CNC operations.
Heat shrink chucks offer enhanced cutting precision by using heat to expand and contract the holder around the tool shank. This process ensures a firm grip and is ideal for operations requiring tight tolerances.
Hydraulic chucks dampen vibrations and improve machining accuracy by using pressurized fluid to secure the cutting tool. These chucks are preferred for high-torque applications due to their exceptional stability.
Milling chucks, also known as power milling chucks, provide strong clamping forces and are well-suited for heavy machining. They utilize a bearing nut to ensure reliability, even in demanding conditions.
Shell mill holders, commonly used with face mills, enable efficient material removal during flat surface milling. Their multiple cutting edges distribute the workload, enhancing productivity.
Tapping chucks ensure precision in drilling and threading applications. By reducing tap breakage and enhancing thread quality, these holders improve overall machining efficiency.
CNC Tool Holder Types, including CNC Turning Tool Holder Types, are essential for achieving precision, stability, and efficiency in machining processes. From CAT and HSK holders to specialized options like hydraulic chucks and tapping chucks, the right tool holder can significantly enhance your CNC machine's performance. Proper maintenance and thoughtful selection of these components ensure seamless operations and superior results in every machining project.
As a manufacturer of CNC machine tools with over 20 years of experience, RuiHan's product range includes CNC Toolholders, Collets, Quick Change Tool Post, Precision Tool Vise, Carbide Cutting Tools, Toolholders... RuiHan is always innovating to provide CNC machine users with robust, high precision CNC tools.
